Drill Bits -Type K23

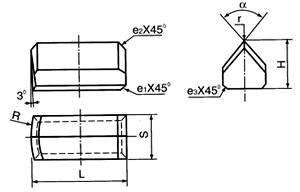

Type K23
mm
| Type | Dimensión | Nota | ||||||||
| L | H | S | R | α | γ | e1 | e2 | e3 | ||
| K23-92001 | 11.0 | 6.5 | 7.8 | 19.1 | 80o | 0.8 | 0.4 | 0.8 | 0.8 | G92509 |
| K23-85001 | 12.0 | G85237 | ||||||||
| K23-85002 | 13.5 | G85236 | ||||||||
| K23-85003 | 15.1 | G85235 | ||||||||
| K23-85004 | 16.7 | 14.3 | 7.7 | 70o | G85233 | |||||
| K23-85005 | 18.3 | / | G85234 | |||||||
| K23-82001 | 28.5 | 22.0 | 13.0 | 31.0 | 110o | / | / | 2.0 | 0.5 | G82023 |
| K23-84001 | 29.0 | 25.4 | 38.0 | / | / | 1.0 | G84131 | |||
| K23-83001 | 34.7 | 22.0 | 45.0 | / | / | 1.5 | G83151 | |||
| K23-84002 | 35.0 | 25.4 | 14.0 | / | / | 0.5 | G84240 | |||
| K23-72001 | 42.0 | 20.0 | 12.0 | 50.0 | 70o | 0.2 | 1.5 | 1.5 | G2076 | |
