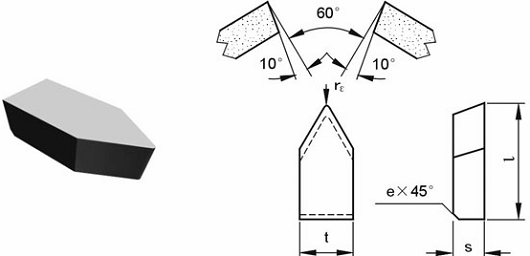

Dicas Soldadas-Tipo C1
| Tipo | Dimens?o(mm) | Aproximadamente peso unitário(g) | |||||||
| l | t | s | rε | e | YG6 | YG8 | YT5 | YT14 | |
| C110 | 10.0 | 4.0 | 3.0 | 0.5 | / | 1.5 | 1.5 | 1.3 | 1.2 |
| C116 | 16.0 | 6.0 | 4.0 | 0.5 | 0.8 | 4.8 | 4.7 | 4.0 | 3.7 |
| C120 | 20.0 | 8.0 | 5.0 | 0.5 | 0.8 | 10.1 | 9.9 | 8.2 | 7.7 |
| C122 | 22.0 | 10.0 | 6.0 | 0.5 | 0.8 | 15.6 | 15.3 | 13.7 | 12.1 |
| C125 | 25.0 | 12.0 | 7.0 | 0.8 | 0.8 | 25.0 | 24.5 | 21.3 | 19.1 |
