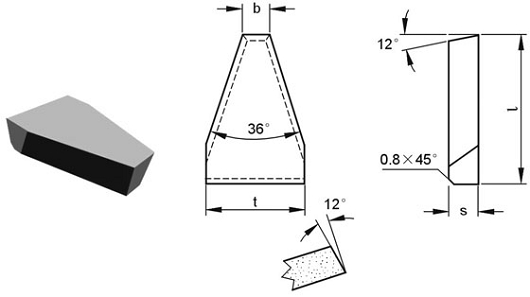

Dicas Soldadas-Tipo C4
| Tipo | Dimens?o(mm) | Aproximadamente peso unitário(g) | ||||||
| l | t | b | e | YG6 | YG8 | YT5 | YT14 | |
| C420 | 20.0 | 12.0 | 3.0 | 5.0 | 13.2 | 13.0 | 11.7 | 10.9 |
| C425 | 25.0 | 16.0 | 4.0 | 5.0 | 21.1 | 20.7 | 17.8 | 16.5 |
| C430 | 30.0 | 20.0 | 5.5 | 6.0 | 38.7 | 38.0 | 33.0 | 30.7 |
| C435 | 35.0 | 25.0 | 7.5 | 6.0 | 55.3 | 54.3 | 48.0 | 44.7 |
| C442 | 42.0 | 35.0 | 12.5 | 8.0 | 128.0 | 127.0 | 110.1 | 99.0 |
| C450 | 50.0 | 42.0 | 15.0 | 8.0 | 185.0 | 182.0 | 159.1 | 143.1 |
